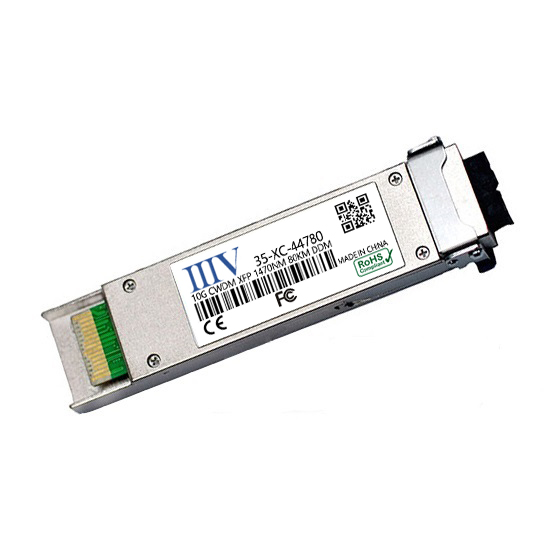

10G CWDM XFP
Hot-pluggable XFP footprint
Supports 9.95Gb/s to 11.3Gb/s bit rates
Supports Lineside and XFI loopback
RoHS-6 Compliant (lead-free)
Power dissipation <3.5W
Maximum link length of 80km
Cooled CWDM EML and APD Receiver
Full Duplex LC connector
No Reference Clock required
Supports 9.95Gb/s to 11.3Gb/s bit rates
Supports Lineside and XFI loopback
RoHS-6 Compliant (lead-free)
Power dissipation <3.5W
Maximum link length of 80km
Cooled CWDM EML and APD Receiver
Full Duplex LC connector
No Reference Clock required
PRODUCT DEATAILS
| Vendor Name | III-V | Form Type | CWDM XFP |
| Data Rate | 10G | Wavelength | 1470-1610 |
| Distance | 40~80KM | Optical Interface | LC Connector |
| Media Type | CWDM | DDM Support | Support |
| Commercial Temperature Range |
0~70℃ |
Industrial Temperature Range |
-40~85℃ |
| MTBF | 1,500,000 HOURS | Certificates | CE,FCC,ROHS,REACH |
| HS CODE | 8517706000 | Warranty | 3 Years |
10G CWDM XFP TRANSCEIVER
|
Part Number |
Product Type | Rate | Media Type | Wavelength | Distance | Connector | Commercial Temp. | Industrial Temp. | Optional |
|
35-XC-4XX40 |
XFP | 10G | CWDM |
1470~1610NM |
40KM | LC |
0~70℃ |
-40~85℃ |
DDM |
|
35-XC-4XX80 |
XFP |
10G |
CWDM | 1470~1610NM | 80KM |
LC |
0~70℃ |
-40~85℃ |
DDM |
10GBASE-ER,ZR/EW,ZW 10G Ethernet
Fiber Channel
SONET OC-192&SDH STM-64
Fiber Channel
SONET OC-192&SDH STM-64
