155M/1.25G/2.5G BIDI SFP
Up To 155M/1.25G/2.5G Data Links
Hot Pluggable SFP Footprint
Bidi SFP Package With LC/SC Connector
From SM 3KM To SM 200KM Transmission On SMF
+3.3V Single Power Supply
LVPECL Commpatible Data Input/Output Interface
Low Power Dissipation
Low EMI And Excellent ESD Protection
Laser Safety Standard IEC-60825 Compliant
Compliant Temp.Range:0~70℃
Industrial Temp Range:-40~85℃
Support Digital Diagnostic Monitoring Interface
PRODUCT DEATAILS
| Vendor Name | III-V | Form Type | BIDI SFP |
| Data Rate | 155M/1.25G/2.5G | Wavelength | 1310/1550NM,1310/1490NM,1490/1550NM |
| Distance | 3KM~20KM | Optical Interface | LC/SC Connector |
| Media Type | SM | DDM Support | Support |
| Commercial Temperature Range |
0~70℃ |
Industrial Temperature Range |
-40~85℃ |
| MTBF | 1,500,000 HOURS | Certificates | CE,FCC,ROHS,REACH |
| HS CODE | 8517706000 | Warranty | 3 Years |
155M BI-DIRECTIONAL SFP TRANSCEIVER
|
Part Number |
Product Type | Rate | Media Type | Wavelength | Distance | Connector | Commercial Temp. | Industrial Temp. | Optional |
|
35-BS-13520 |
BIDI SFP | 155M | SM |
1310/1550NM |
20KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-13540 |
BIDI SFP |
155M |
SM | 1310/1550NM | 40KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
| 35-BS-14560 |
BIDI SFP |
155M |
SM |
1490/1550NM |
60KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
| 35-BS-14580 |
BIDI SFP |
155M |
SM |
1490/1550NM |
80KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
| 35-BS-145C0 |
BIDI SFP |
155M |
SM |
1490/1550NM | 100KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-145CX |
BIDI SFP |
155M |
SM |
1490/1550NM |
120KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-145CL |
BIDI SFP | 155M |
SM |
1490/1550NM | 160KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
| 35-BS-145C8 |
BIDI SFP |
155M |
SM |
1490/1550NM | 180KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-145CC |
BIDI SFP |
155M |
SM |
1490/1550NM |
200KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
1.25G BI-DIRECTIONAL SFP TRANSCEIVER
|
Part Number |
Product Type |
Rate |
Media Type |
Wavelength |
Distance |
Connector |
Commercial Temp. |
Industrial Temp. |
Optional |
| 35-BS-23503 |
BIDI SFP |
1.25G |
SM | 1310/1550NM | 3kM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|

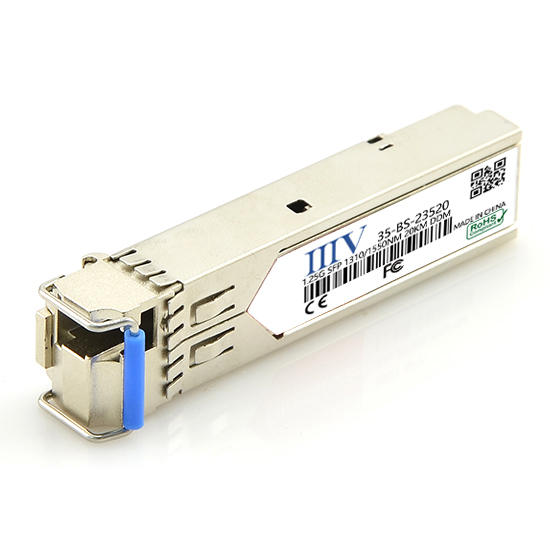

35-BS-23520 |
BIDI SFP |
1.25G |
SM | 1310/1550NM | 20KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-23540 |
BIDI SFP |
1.25G |
SM |
1310/1550NM |
40KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-24560 |
BIDI SFP |
1.25G |
SM | 1490/1550NM | 60KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-24580 |
BIDI SFP |
1.25G |
SM |
1490/1550NM | 80KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-245C0 |
BIDI SFP |
1.25G |
SM |
1490/1550NM |
100KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-245CX |
BIDI SFP |
1.25G |
SM |
1490/1550NM |
120KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-245CL |
BIDI SFP |
1.25G |
SM |
1490/1550NM | 160KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-245C8 |
BIDI SFP |
1.25G |
SM |
1490/1550NM | 180KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
2.5G BI-DIRECTIONAL SFP TRANSCEIVER
| Part Number |
Product Type |
Rate |
Media Type |
Wavelength |
Distance |
Connector |
Commercial Temp. |
Industrial Temp. |
Optional |
| 35-BS-33520 |
BIDI SFP |
2.5G |
SM |
1310/1550NM |
20KM | LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-34540 |
BIDI SFP |
2.5G |
SM | 1490/1550NM | 40KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-34580 |
BIDI SFP |
2.5G |
SM | 1490/1550NM | 80KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
|
35-BS-345CX |
BIDI SFP |
2.5G |
SM |
1490/1550NM |
120KM |
LC/SC |
0~70℃ |
-40~85℃ |
DDM |
Ethernet
F FTTX
Telecom
Fiber Channel
